SharePoint 2010 Beta Installation (Part 7): Running Active Directory Domain Services Installation Wizard

This is the seventh post in a series of posts where I'm using screen shots to walk you through the steps to install SharePoint 2010 and all its prerequisites such as OS, SQL Server, service packs, cumulative update packages, etc.

In the previous post, we put in place the bits required to install the AD DS server role. In this post, we will run the AD DS Installation Wizard to install and configure the AD DS server role. To do so, you can either click the link shown in the last screen in the previous post or use Run from Start menu to execute dcpromo.exe. Either of these methods will lauch the AD DS Installation Wizard:

As this screen says, when you run the AD DS Installation Wizard on a server, it does two things:

• Installs the AD DS server role on the server
• Turns the server into a domain controller

We discussed the role of domain controllers in the previous post. Click the Next button on the previous screen. This takes you to the following screen with a long FYI for you:

It's a rather a long read but it boils down to this. Windows Server 2008 uses a stronger cryptography algorithms to secure access to domain controllers. Needless to say that those applications that do not support this more secure approach may fail. This is just for your FYI. Obviously this is no concern in our current deployment scenario and we should be fine. Click Next. This takes you to the following screen:

This screen gives you two options:

• Create a new domain in a new forest. Use this option if you're creating a new forest. This covers two scenarios. One scenario is when you're installing Active Directory for the first time in your environment where you have no other forests, which is exactly the scenario we're dealing with in our current installation of Active Directory. The second scenario is when you already have an Active Directory with one or more forest and you're trying to create a new forest. This is rare though.
• The second option is indeed two options canned as one option. The first option allows you to add a new domain controller to an existing domain. In other words, you're not creating a new domain. You're just adding a new domain controller. The second option allows you to create a new domain in the existing forest. This option automatically makes the server the domain controller in the new domain.


Keep in mind regardless of which option you choose, running the AD DS Installation Wizard on a server always turns that server into a domain controller.

Now back to our installation process. Select the "Create a new domain in a new forest" option from the previous screen and click Next:

Enter a name for the new domain such as myserver.local. Note that if you enter a single label as the domain name and hit Next, you'll get the following warning message:

Domain names should be unique consisting of labels separated by periods (.). Enter MyServer.Local (any other period-separated labels) as the domain name in the screen before the previous screen and click Next. This takes you to the following screen:

This is where you set your new forest's functional level. The "Forest functional level" menu contains three functional level options. First is Windows 2000, which is selected by default. This forest functional level limits the forest's functional level to only those AD DS features that are available in Windows 2000 servers. This means that the more advanced AD DS features that are supported in later versions of Windows Servers (such as Windows Server 2008) will not be available to those domain controllers running on those later versions of Windows Server. Second menu option is Windows 2003:

As you may have guessed it already, the Windows Server 2003 functional level limits the functional level of your new forest to AD DS features available in Windows Server 2003. This also means that you cannot add domain controllers running on Windows 2000. You're limited to domain controllers running on Windows Server 2003 or higher.

The third forest functional level option is Windows Server 2008:

Needless to say this will not allow you to add domain controllers running on the previous versions of Windows Server such as Windows Server 2003 or Windows 2000. However, it enables your forest to take advantage of all new AD DS features in Windows Server 2008.

Select the Windows Server 2008 option and click Next. This takes you to the following screen:

This screen gives you three additional domain controller options. We call them domain controller options because as mentioned earlier when you run the AD DS Installation Wizard on a server it automatically turns the server into a domain controller. You have three option:

• DNS server
• Global catalog
• Read only domain controller (RODC)

We all know what a DNS server role is. It is the server role that resolves names into IP addresses. Active Directory needs the DNS to resolve resource names into IP addresses. Therefore, you have to either already have a DNS server on the network or choose to install one here. Recall that we did not manually install the DNS server role. We only installed the AD DS server role. Therefore, we have to let the AD DS Installation Wizard install the DNS server role for us. So we have to select the DNS server option on the last screen. How about the other two options?

As discussed earlier, each domain may contain more than one domain controller. The domain controllers in a given domain only maintain information about resources in that domain in their copies of the AD database. This keeps the size of these AD database copies small and replication manageable. Imagine how big the size of these AD database copies would be and how expensive these replications would be if these AD database copies were to include information about all resources in the forest, which could consist of numerous domains.

However, this introduces a problem. This seems to create silos of domains where there is no central repository where you could find information about resources in other domains. This is where the concept of global catalog server come into play. Specific domain controllers in a forest are set up as global catalog servers. These servers maintain the global catalog database, which contains brief information about all resources in the forest. Those that need more detailed information about a resource can refer to the respective domain. In Active Directory the first domain controller in a forest is automatically turned into a global catalog server, which will maintain the global catalog database. That is why the global catalog option is automatically selected and grayed out in the previous screen. In other word, the AD DS Installation Wizard will turn this server into a global catalog server you like it or not.

How about the third option, i.e. Read only domain Controller (RODC)? What is a RODC anyway? This is a new type of domain controller that Microsoft introduced in Windows Server 2008. This addresses scenarios such as the following two important scenarios:

• Imagine a branch office in your organization has a very poor network bandwidth. Authenticating users in this branch office against a domain controller over a WAN can degrade performance dramatically for these users. You may say why don't we just add a new domain controller to the network of this branch office. This would work if the branch office has the adequate physical security in place to maintain a writable domain controller. What if these branch offices don't have such physical security infrastructure in place? This is where Read Only Domain Controllers (RODC) come into play. These branch offices can host read only domain controllers in their network to speed up their work without compromising the security of the AD database because the database is read only.
• Imagine application servers that must be hosted on domain controllers for some reason or another. For example, it could be that the domain controller is the only server available. Now hosting application servers on the domain controllers introduces security risk because the owners of these applications need to directly access and log onto these servers. This is where Read Only Domain Controllers (RODC) can solve the problem. In other words, you host your application servers on read only domain controllers where AD databases are read only and cannot be compromised.

Note the "Read only domain controller (RODC)" option is unchecked and grayed out on the previous screen. This is because the first domain controller in a forest must be a global catalog server and cannot be a read only domain controller.

Now back to the installation of AD DC. Select the DNS server option and click the Next button on the previous screen. This will pop up the following dialog:

This is telling you that your laptop has dynamically assigned IP address and asking you to assign static IP address to your network adapter for reliable DNS operation. These dynamic IP addresses are normally assigned by your ISP and can change every time. If you have more than one computer in your network accessing the same DNS and if the IP address of that DNS constantly changes the DNS cannot operate reliably in your network. Off course this is not an issue in our case where we have only one computer in our network. So we could safely ignore this message.

However, here is how you can assign static IP address to your laptop, which happens to host the DNS server as well. Go to the Network and Sharing Center. Click Manage network connections under Tasks heading to go to the Network Connections. Right click the network connection that you want to configure and select Properties to launch the Local Area Connection Properties dialog:

Select the Internet Protocol Version 4 and click Properties:

Select Use the following IP address option and enter the IP address that you got from your system administration for your laptop. Select the Use the following DNS server address option and enter the IP address of the DNS server in your network.

Now back to the installation of AD DS. In the last installation screen, click the "Yes the computer will use a dynamically assigned IP address" option. The AD DS Installation Wizard will pop up the following message:

This message is basically warning you that the AD DS Installation Wizard could not find a parent zone. This is so because we are creating a new forest, which has its own DNS server. This message is saying that if you need to integrate this DNS server into your existing organizational DNS server infrastructure you have to do the configuration manually because the current installation has no access to this infrastructure. This is fine with us so we can safely ignore this warning. Click Yes to continue the installation. This takes to the following screen:

As discussed earlier, each domain controller maintains a copy of the AD database and respective log files and SYSVOL. This is where you specify the folders, which will contain the domain controller's copy of the AD database, log files, and SYSVOL.

Keep the default values for these folders and click Next:

You can restart a domain controller in a mode known as Directory Services Restore Mode. When you restart a domain controller in this mode, it takes the domain controller offline where the domain controller no longer function as a domain controller. This screen allows you to specify the password for the Directory Services Restore Mode Administrator account, which is obviously different from Domain Controller Administrator account. Enter a password and click Next:

This screen allows you to review the selections you've made before the actual installation starts. Click Next:

Wait until the installation completes and you get the following screen:

Click Finish. This will take you to the following screen:

You need to restart your computer to complete the installation. Click Restart Now to complete the installation.

The installation also promotes local Windows accounts on the domain controller into AD accounts. You can see this by selecting Start > Administrator Tools > Active Directory User and Computers to launch the Active Directory Users and Computers where you can manage resources in your domain:

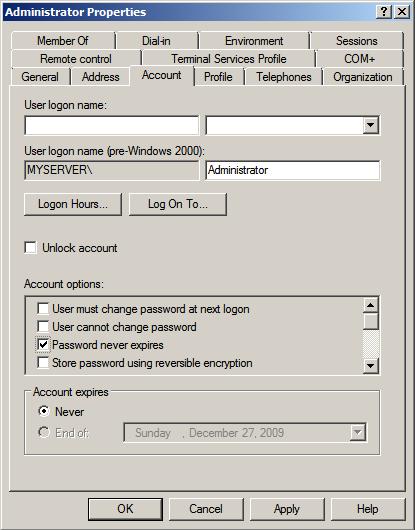

As you can see, the Administrator account, which used to be a local Windows account, has been promoted to an AD account. Because we want to use this account later in our SharePoint installation process, let's go ahead and make sure this account's password never expires. Double click Administrator in the previous screen to launch Administrator Properties. Switch to the Account tab and the "Password never expires" option and click OK.

In the next post, we'll install SQL Server 2008.
